Electric UGV Active RTK GNSS Electric Drive

KNOX Build Guide

Complete guide to building the KNOX electric 4-wheel UGV, from mechanical assembly and wiring to RTK GNSS setup and autonomous waypoint navigation.

Jump to: Overview Components Assembly RTK Setup Navigation Build Video

What You'll Build

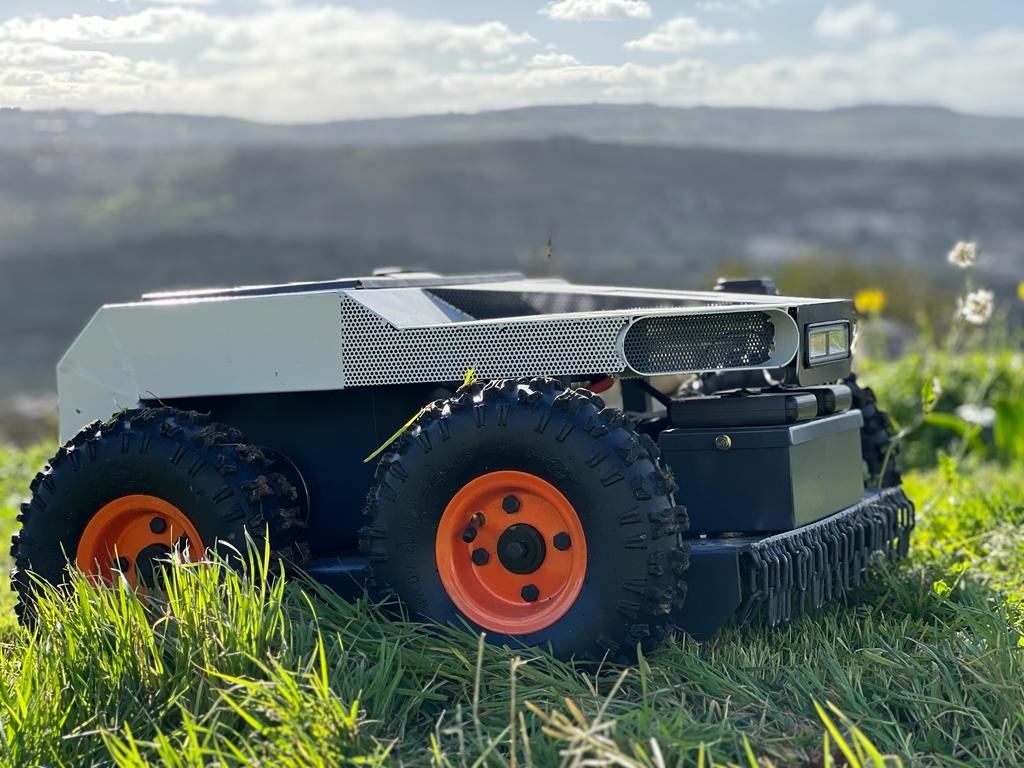

KNOX is an electric-powered 4-wheeled Unmanned Ground Vehicle (UGV) designed for precision autonomous operation. Originally developed as an autonomous grass-cutting platform, KNOX combines electric drive motors, GNSS RTK positioning, and programmable waypoint navigation into a single field-ready machine capable of achieving centimetre-level accuracy.

The platform supports two operating modes: full manual RC control and fully autonomous waypoint navigation. In autonomous mode, KNOX follows a pre-programmed route with repeatable sub-centimetre accuracy, making it ideal for agricultural, landscaping, and research deployments.

<1 cm

RTK Accuracy

4-Wheel

Electric Drive

Dual Mode

Manual & Auto

Build Overview

Source the Chassis

Obtain or build the 4-wheel electric drive platform chassis and motor assembly.

Install Flight Controller

Mount the ArduPilot-compatible flight controller that manages autonomous navigation.

Mount GNSS RTK Module

Install the GNSS receiver and RTK correction antenna for centimetre positioning.

Configure RTK Base / NTRIP

Set up RTK corrections via a base station or NTRIP service for sub-cm accuracy.

Wire Electronics

Connect motors, ESCs, controller, GNSS, RC receiver, and power distribution.

Configure ArduPilot

Tune the KNOX parameters, calibrate sensors, and verify motor mixing.

Program Waypoints & Test

Define an autonomous mission, verify RTK lock, and execute your first autonomous run.

Components List

Component	Specification	Purpose
4WD Chassis	Electric UGV frame with motor mounts	Platform base and drive
Brushless Motors	Outrunner motors (×4) with encoders	Wheel propulsion
ESC	20–30A brushless ESC (×4)	Motor speed control
Autopilot Board	Pixhawk 4 / Cube Orange / Ardupilot	Navigation & control
GNSS RTK Receiver	u-blox F9P or equivalent	Sub-cm positioning
RTK Antenna	Survey-grade helical or patch	GNSS signal reception
RC Receiver	SBUS/PPM compatible (≥6 channels)	Manual control override
LiPo Battery	4S–6S 10,000–20,000 mAh	Main power supply
Power Distribution	PDB with current sensor	Power distribution & monitoring
Telemetry Radio	433 MHz or 915 MHz pair	GCS real-time link
Onboard Computer	Raspberry Pi 4 (optional)	Mission planning & logging

Mechanical Assembly

Chassis Construction

Assemble the 4WD chassis frame. Ensure motor mounts are aligned and square. Use thread-lock compound on critical fasteners.

Electronics Bay

Mount the autopilot board on a vibration-dampening plate at the centre of mass. Use foam standoffs to isolate the IMU.

GNSS Antenna Placement

Mount the RTK antenna at the highest point, away from motors and ESCs. Run coax cable away from power wires.

Telemetry & RC Antennas

Position telemetry antennas vertically. Ensure RC receiver antennas are separated by 90° for diversity reception.

RTK GNSS Setup

Configure the F9P Rover

Connect the u-blox F9P to your autopilot via UART. Configure baud rate (115200), output messages (RTCM3 + UBX NAV-PVT), and set rover mode in u-center.

Set Up RTK Corrections

Subscribe to an NTRIP correction service or deploy your own F9P base station surveyed to a known point.

Configure ArduPilot GPS

In Mission Planner, set GPS_TYPE to ublox, enable RTCM injection, and verify RTK float → RTK fixed lock.

Verify Accuracy

With RTK Fixed lock, accuracy drops to ≤1 cm. Confirm by comparing coordinates against a known survey marker.

RTK Fixed vs Float: Float gives ~30–50 cm accuracy; Fixed gives ≤1 cm. Always wait for RTK Fixed lock before starting an autonomous mission.

Waypoint Navigation

KNOX uses ArduPilot Rover firmware and Mission Planner GCS for autonomous waypoint missions.

Mission Planning

Place waypoints on the map, set vehicle speed, turn radius, and arrival radius. Upload mission before arming.

Real-Time Monitoring

Monitor live position, speed, battery voltage, RTK status, and remaining waypoints via telemetry.

Repeatable Accuracy

RTK Fixed positioning allows KNOX to re-execute the same mission with sub-centimetre repeatability.

Safety Features

ArduPilot failsafe returns KNOX to home if RC link or telemetry is lost. Manual override always available.

Before Your First Autonomous Run: Test manual control first, verify RTK Fixed lock, check failsafes, and have a spotter present.

Full Build Video

Build at a Glance

DifficultyAdvanced
Type4-Wheel UGV
ControllerArduPilot / Pixhawk
PositioningGNSS RTK
Accuracy<1 cm RTK Fixed
DriveBrushless Electric
NavigationArduPilot Waypoints

Key Capabilities

Sub-centimetre RTK accuracy
Autonomous waypoint missions
Manual RC override always available
Real-time telemetry monitoring
ArduPilot failsafe protection
Precision agriculture ready
